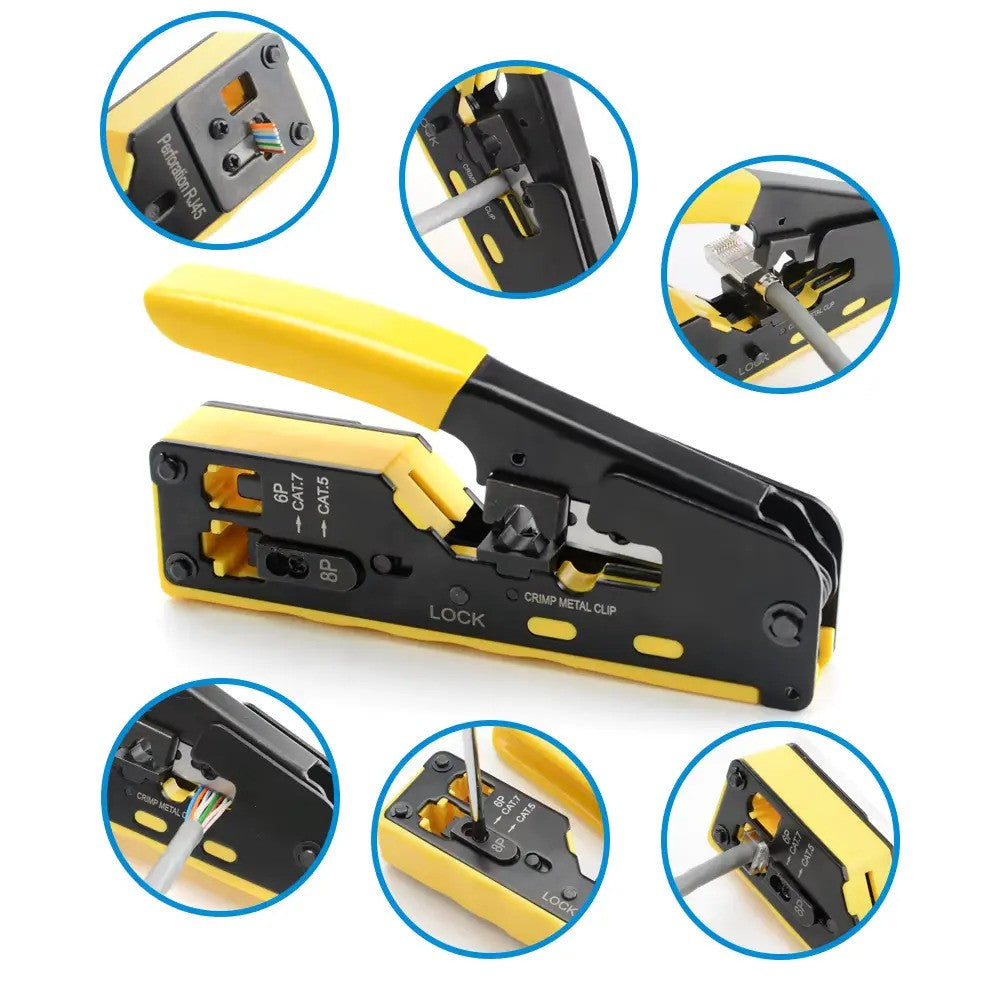

Speed-X HT-718 CAT7 RJ45 Crimping Tool with Cutter

Speed-X HT-718 CAT7 RJ45 Crimping Tool with Cutter

Multi Function: Used for pass-through design connectors, crimp the connector and cut the extra wires, another function of crimping a dovetail clip, which helps crimp modular plugs with feed-thru design and a dovetail clip at the same time.

High Precision: High-standard precision crimping and grinding port, fixed modular plugs to make sure cables do not fall.

CAT5 CAT6 CAT7 Modular Crimper: It doesn’t matter whether you are an IT professional who is dealing with network cables and connectors daily or just a home user who is a newbie to the Ethernet network; you should get the Microware Ethernet crimping tool. 2/3 the size of traditional crimpers, comes with a screwdriver and cable stripper, crimps standard CAT5, CAT6, and shielded CAT7 network connectors, and is budget-friendly altogether. This network tool from Microware is a top-ranked RJ45, RJ12, and RJ11 network crimper today.

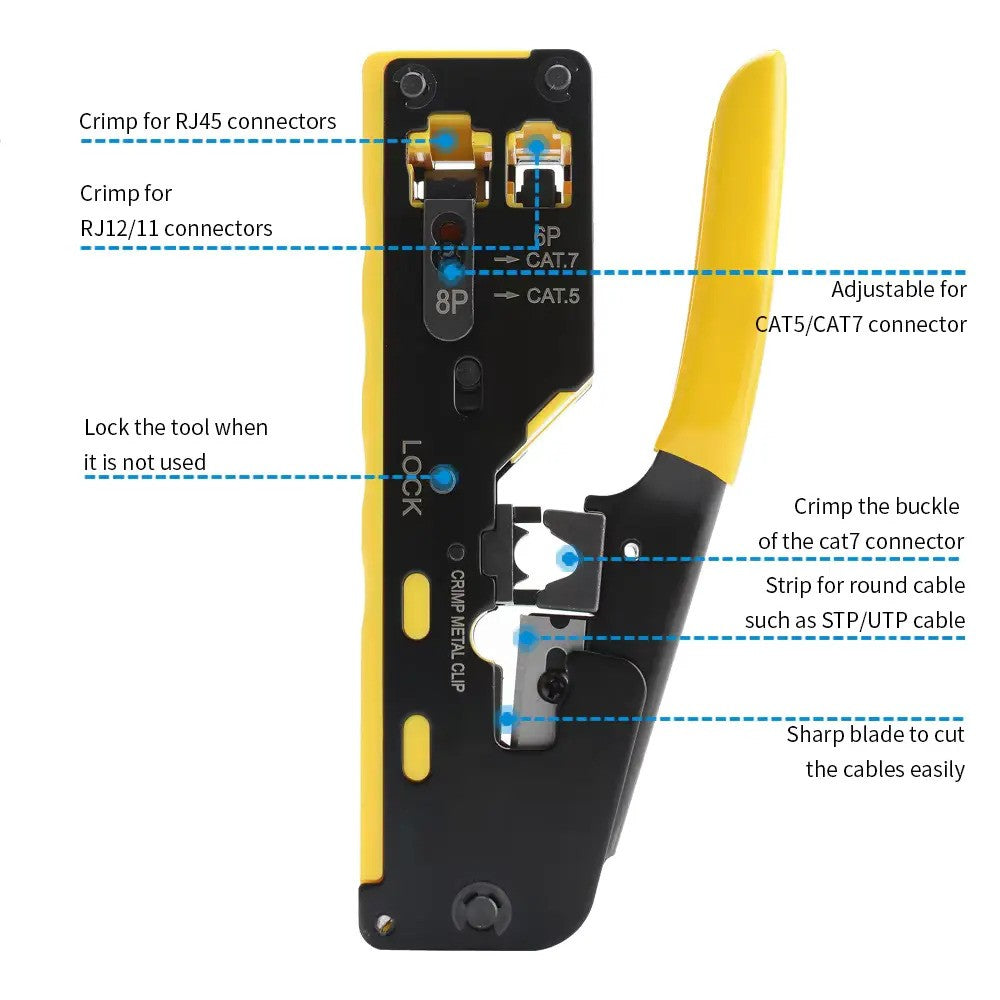

The Function of the Tool

• Lock Button

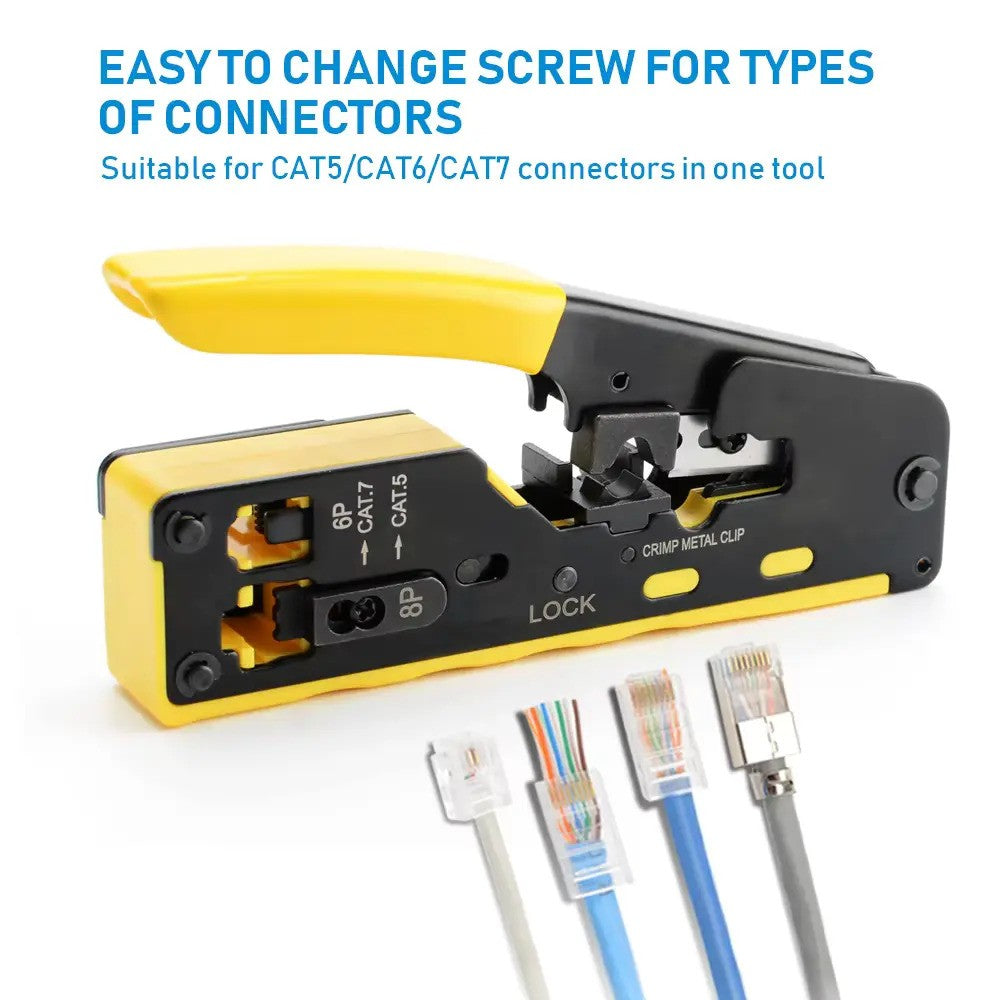

• Regulating Screw for Cat5/Cat5e/Cat6/Cat6a/Cat7
• 8P8C, RJ45 For Ethernet Cable
• 6P6C,4P4C,RJ11,RJ12 For Telephone Cable
• Dovetail Clip Crimper

How to make the RJ45 cable:

• Put the cable into the stripper.
• Rotate the mini wire stripper around the cable.
• Put the wires into the load bar in turn (by the RJ45 order of T568A or T568B ), and cut the wires horizontally.
• (If you want to crimp the RJ11/RJ12 cables, the wire order is different from the RJ45 cables.)
• Assemble the plug.
• Press down the handle and roll out the lock button from the back to unlock.
• Regulating screw fit for Cat5 or Cat7.
• (If you want to crimp the RJ11/RJ12 cable, ignore this step.)
• Put the plug into the crimping tool, and then crimp the plug.
• Lightly press the tail to the middle, and use the dovetail clamp crimping.
